Piston type reciprocating compressors

SGYM has a complete range of products and strong design and manufacturing capabilities. The products are mainly divided into: high-pressure series compressors, medium and high-pressure series compres-sors for oilfield use, piston compressors for general power, V-type oil-free compressors, liquefied petro-leum gas circulation compressors, natural gas and natural gas bottle filling series compressors, and various pressure vessels. According to the different needs of users, we can provide compressors with different specifications, ranging from 0.2-100m3/min in displacement and 0.2-45MPa in exhaust pres-sure. We can also compress various media such as air, nitrogen, liquefied petroleum gas, coal gas, natu-ral gas, carbon dioxide, propane, ethylene, ammonia, and difluoroethane. There are over 600 varieties of products widely used in urban construction, petroleum, coal,geology, chemical industry, metallurgy,machinery manufacturing, medicine, food, beverage, liquefied gas station, natural gas station and other fields.

TYPES OF INDUSTRIAL MID/SMALL TYPE
RECIPROCATING COMPRESSORS

Piston reciprocating compressors basic data sheet on type aspect

Compressor basic data sheet Compressor form Crankshaft Transfer method Numberofcolumns Maximum gas force load
KN

Journey
mm

 Piston rod diameter
mm		 Transmission component load
KN		 Compressor speed range
r/min

Maximum shaft power
 of compressor
KW

 Motorvoltage
V

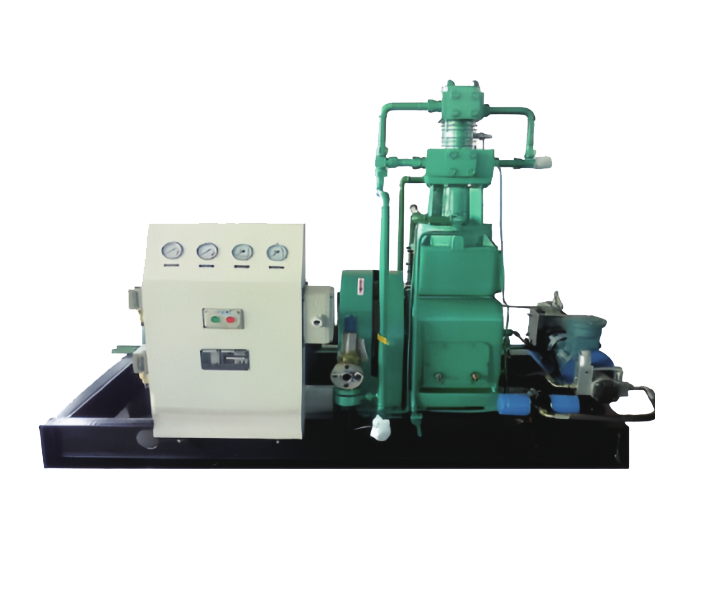

Z Vertical Forced lubrication Direct connection/belt 1 20 80 30 20 980-400 37 380
35 95 35 35 75
2 10 80 25 10 980-400 37 380
20 80 30 20 75

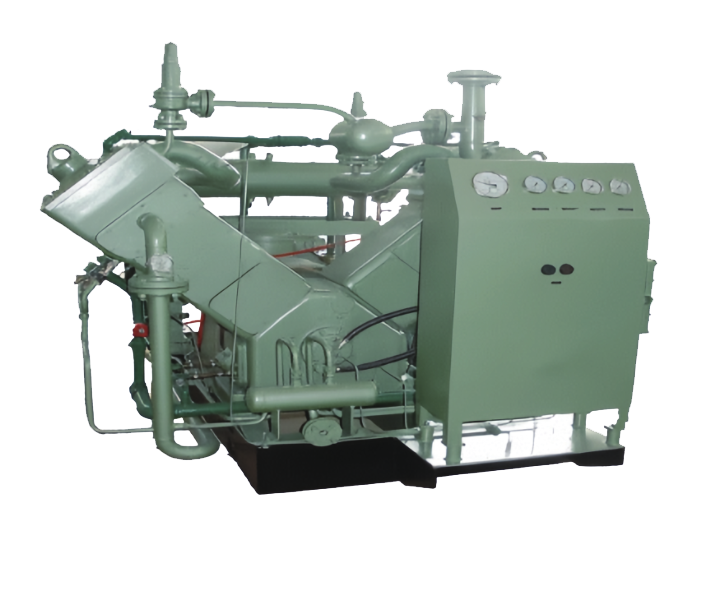

V V-shaped Forced Direct 2 35 95 35 35 980/740 110 380
45 92 40 45 185
D Dynamic balance Forced lubrication Direct 2 50 98 40 50 980/740 220 380/6000/10000
2 80 120 60 50 740 355
2 160 240 80 160 428/375 600
M Dynamic balance Forced Direct 4 50 98 40 50 980/740 315 6000/10000
4 160 240 80 160 428/375 1000
